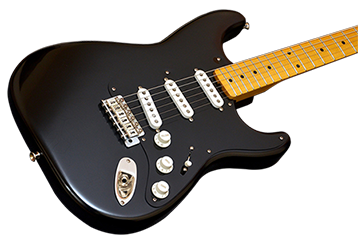

The desirable Black Stratocaster* has sold for $5.7M

You can expect non-aged sound with Zero-Hum, longer sustain, minimized fret buzz and sound you'll love because it a Zero-Hum replication of your guitar God's sound, DG.

News flash Apr-2021: Now with our new Synergy baseplate that allows switching off Hum Cancelling as well as switching to 'Synergy' mode for those that think hum is part of Fender sound.  Even with hum they still sound better than ordinary pickups.



Non-noiseless pickups in the Black Strat in 1979 were custom wound Seymour Duncan SSL1C bridge pickup (forerunner to current SSL5), Fender '71 neck and middle (source http://www.gilmourish.com/?page_id=66)

NOTE: It appears Fender disregarded the above info in their Gilmour TRIBUTE Black Strat which has a set of three Fender Fat 50's (non-noiseless).



Our boxed set comprises Texas Jalapeno Extra (new version added 9-Mar-2020) bridge with Impersonator E56 middle and neck which is closer to the pickups of 1979.  We changed the bridge from Impersonator Fat 50 to Texas Jalapeno circa June-2019.  Include our K7 Goodbye Soldering Harness and you'll also have David Gilmours wiring mod which gives you an intense Telecaster funky c-lunky sound when mixing the bridge and neck pickups.

These pickups will deliver the sound you want with all the amazing benefits that only Kinman can offer.  For a start our low strength Alnico rod magnets promote sustain by reducing magnetic string pull -and- simultaneously reducing string crash which also shortens sustain by robbing energy from the vibrating strings when they crash into the frets.  This also makes the sound cleaner with less buzz and clatter.  And the best of all is Zero-Hum (noiseless).  These are the reasons Kinman Strat pickups are the Pure Musical Energy pickups.

It must be borne in mind that our pickups are versatile and under different amplification environments and in the hands of different artists can deliver a wide range of sounds and that's the reason you'll see the same models included in various different Artist sets.

This set is our take on the Artists sound and is not intended to infer the artist uses these pickups. although some do.

Signal chain requirements for best tone and dynamic performance  Like any pickup it's not a bad idea to use a low capacitance cable to get the incredible performance of these pickups and hear all the nuances you and your guitar can muster.  Learn why here Any old cable won't do.



Some people will call these noiseless Stratocaster pickups but Kinman prefers to describe them correctly as Zero-Hum Stratocaster pickups.  That's because there are 2 types of noise, Hum which is cancelled in the pickup and Buzz which can only be minimized by shielding the wiring cavities (refer to >Technical >Perfect Guitar >Shielding for newer guitars


*Stratocaster and Strat* are a Trade Marks of Fender Musical Instrument Corp.  Kinman is not connected to Fender.

** Alnico-K is a unique proprietary rod magnet developed by Kinman in 1985.  It has 40% less string pull than Alnico-5 so sustain is longer and there is much less clatter from string crash and no Strat-itis string warble.


Covers

  • Standard Kinman cover (without height extender bushings included).
  • Available in White, Black, Aged White.
  • With or without Kinman logo.
  • White cover can be tinted with food stains such as Coffee and Tea.
  • Generic covers will not fit Kinman Strat pickups.  We sell replacement covers in three colors.

Connection means available

  • Bare wires for soldering.
  • Kinman connectors for plugging into any Kinman Goodbye-Soldering Harness.

Dimensions

Pot & Capacitor values

  • Best with 250k Ohm (measured minimum) volume pot.  Less punch and more bright with 500k.
  • Tone pot is usually the same value as the volume but for a little more top end brightness can be 500k, 1meg or a No-Load.
  • Stock pots can actually measure as low as 175k.  Pots in our Goodbye-Soldering Harness are guaranteed to measure no less that 250k.
  • Normal tone cap value of 0.022uF, 63 ~ 100 volt Polyester.  Smaller uF value lessen the severity of Treble cut, higher values increase it.
  • The voltage rating of Caps is not important but 63 ~ 100 volt have thicker lead wires that result in a neater job.

Magnet spreads we normally ship (ensures magnets align with the strings in each position)

  • Narrow 49.5mm
  • Intermediate 51mm
  • Standard 52.5mm
  • Option to specify your magnet spreads of sets and singles in our 'After-Order Supplementary Questions' email we send you.

Magnet Staggers

  • Normal improved Stagger to suit 7" ~ 14 inch uniform radius fretboards including USA Custom Guitar Compound 7-1/4" ~ 9-1/2
  • Flat Stagger 14" ~ 20" for specific compound radius fretboards (Warmoth 10 ~ 16 inch and Post 2010 Fender Deluxe 9 ~ 14")
  • Option to choose your magnet stagger for sets and singles in our 'After-Payment Supplementary Questions' email we send you.

Hook-up cable

  • 2 conductor shielded is standard.
  • Middle pickups when supplied with a K9, TK4 or TK9 harness have 3 conductor shielded.
  • 3 conductor by request with Order.
  • Custom lengths by request with Order.

Output Polarity:

  • in-phase with Gibson and Copy humbuckers
  • in-phase with all other Kinman pickups
  • opposite phase to Fender Strat

Mounting hardware included

  • 2 Pan head mounting screws.
  • 2 Silicon Rubber tube springs.

We highly recommend consulting the Install Guide in the Technical section even if you think you know it all.  Kinmans' require specialized knowledge and sometimes there is updated info.  There is also a handy wiring diagram available.

We also highly recommend consulting the Adjust & Set-up page in the Technical section so you get the best out of your Kinman pickups.




Gilmour set live

Clean intro then Fast Forward to 5:48 for overdrive solo



Thom

UNITED STATES 06-May-2019

I installed my new Gilmour set in my Fender Custom Shop Todd Krause '50s Strat, replacing the Fender Fat '50s that came with it. WOW!! This is what I've been seeking. This is my 4th set of Kinman Strat pickups - over the last 20 years I've installed Blues, Hank Marvin, and Impersonator '54 sets in various Strats. These new Gen 2 pickups are what I've always hoped for - they've got air, they've got clarity, and they've got that lovely quiet space between notes. Congratulations!! You've arrived!

Many, many thanks! Thanks for the spectacular pickups, thanks for the excellent service, and thanks for the quick and easy shipping.

Dennis Mecham

USA 06-May-2019

Installed the Gilmour pickups with the Fender mid boost circuit. It's now the finest Strat I've ever played and the only one where I love all 5 pickup positions. And so quiet. Tonally a thing of beauty. I've never been a Strat player until now. Beautiful pickups.

Brian

06-May-2019

Installed the Gilmour Set into my Roman Pearlcaster. Best pickups I've ever owned/played hands down. Thank you for building such amazing pickups! I'm looking to now install some in my MIM strat that is seT up HSS. What humbucker would couple best with the Impersonator E56 ? Thank you , Brian

Daniel Roder

Germany 01-Jan-1970

These pickups are incredibely good sounding and the possiblilities with the k9 on them are totally stunning! I was about to order the woodstock plus set with the k9, but i am very happy i went for the Gilmour Set! Perfect choice for me :)

Stephen Assey

USA 01-Jan-1970

Just wanted to say that I had the Gilmour set installed in my Clapton Strat and they sound fantastic. The pickups are clear, articulate, and extremely dynamic. What a difference between the Kinmans and the sterile Fender Vintage Noiseless. The attack is slightly rounded compared to the Fralins in my Ash Strat. This is welcomed as the Kinmans will take fuzz & distortion better than the Fralins. While the Fralins sound great clean, the Gilmour set sound excellent clean & dirty. Thank you for bringing my Clapton Strat to life!

Daniel Roder

Germany 01-Jan-1970

These pickups are incredibely good sounding and the possiblilities with the k9 on them are totally stunning! I was about to order the woodstock plus set with the k9, but i´m very happy i went for the Gilmour Set! Perfect choice for me :)

Stephen Assey123

01-Jan-1970

Gilmour set (Impersonator Fat 50 bridge, Impersonator A56 neck & middle) Just wanted to say that I had the Gilmour set installed in my Clapton Strat and they sound fantastic. The pickups are clear, articulate, and extremely dynamic. What a difference between the Kinmans and the sterile Fender Vintage Noiseless. The attack is slightly rounded compared to the Fralins in my Ash Strat. This is welcomed as the Kinmans will take fuzz & distortion better than the Fralins. While the Fralins sound great clean, the Gilmour set sound excellent clean & dirty. Thank you for bringing my Clapton Strat to life!
