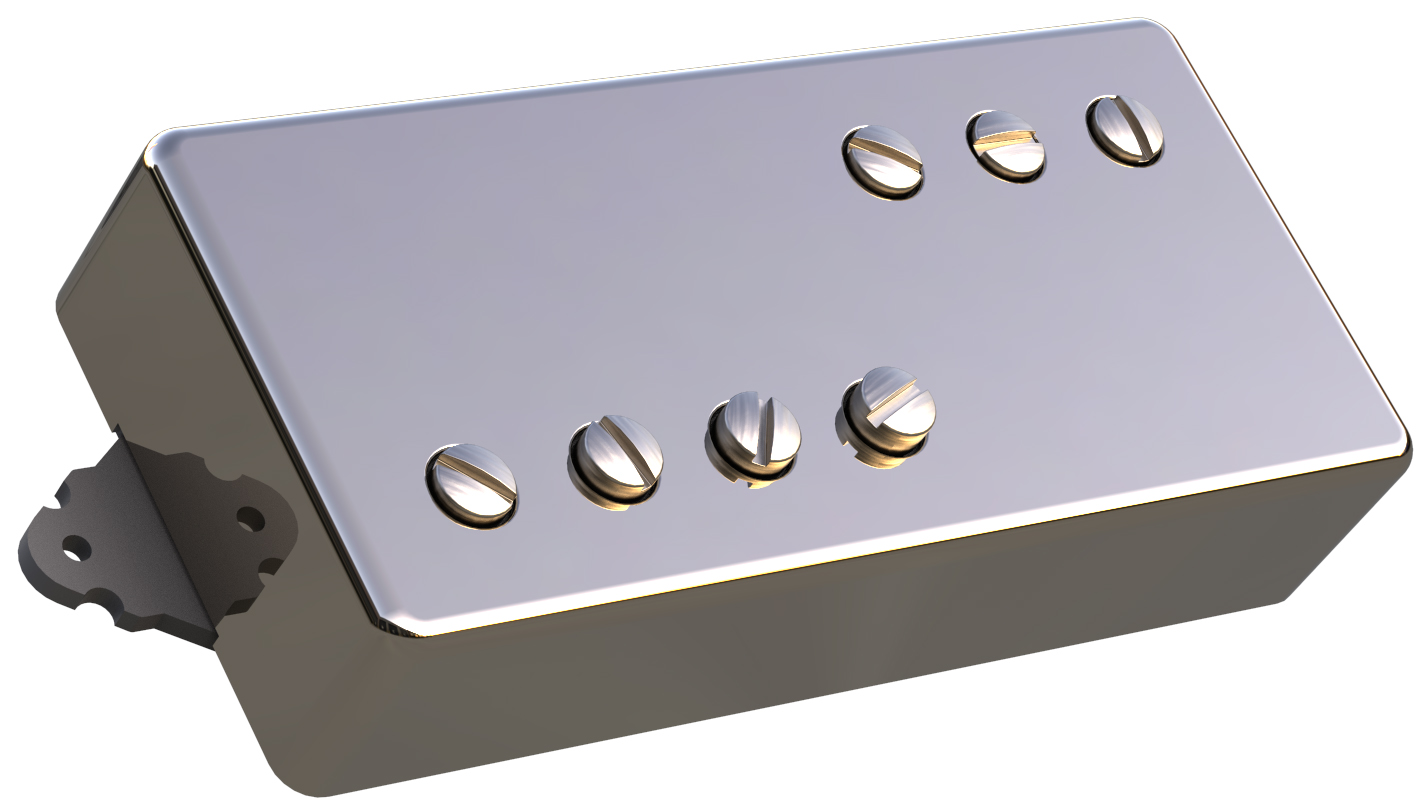

Above is the 7 String version of our fabulous P90-Bucker

Our new Custom Shop is now offering a variety of Absolute Zero-Hum 7 String pickups.  We can make 7 string versions of our fabulous Twang-Bucker and P90-Bucker which produce 110% single coil sound, as well as more conventional humbucker models such as 59+ LPS, P.A.F Plus, Big Little Terror and Big Little Ripper including a fully noiseless split single coil Converge-3.  All  in a hand buffed Nickel-Silver extended humbucker cover.

We can also make a variety of 7 String pickups in Soapbar P-90 Hx as well as the Wide Range form factor.

We'd love to talk to you about what you are lusting after so go ahead and Message us and we will do our utmost to make your dreams come true.

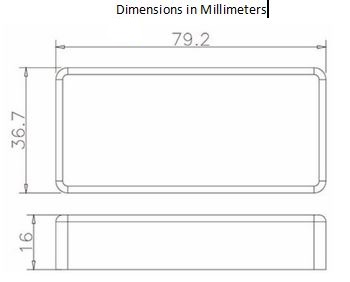

Dimensions

Hook-up cable

  • Some models are splittable and have a 3 conductor hook-up cable.  380mm / 15" long

Connection means available

  • Bare wires for soldering.
  • Kinman connectors for plugging into any Kinman Goodbye-Soldering Harness.- including the 2 pickup KHP-90 for Gibsons.

Output Polarity:

  • Can be phase reversed with it's standard 3 Conductor Hook-Up cable

Pot & Capacitor values

  • Best with 500k Ohm for Volume & Tone.  Also works satisfactorily with 250k.
  • Normal tone cap value of 0.022µF in 63 ~ 100 volt Polyester.  Smaller value lessen the severity of Treble cut, higher values increase it.

Pole spread

  • 60mm only and suitable for bridge and Neck positions in 7 string guitars that have a bridge saddle spread of approximately 64mm.

Covers and colors

  • Open top hand buffed Nickel-Silver.
  • Kinman humbuckers are engineered differently without molded plastic bobbins.  Removing covers will not reveal bobbins and we advise against it.
