Under the Hood of E69 you can see the taller upper coil and the squashed lower 600 Ohm Hum sensor.  What you can't see is our patented Magnetic Focusing device inside the tall coil.

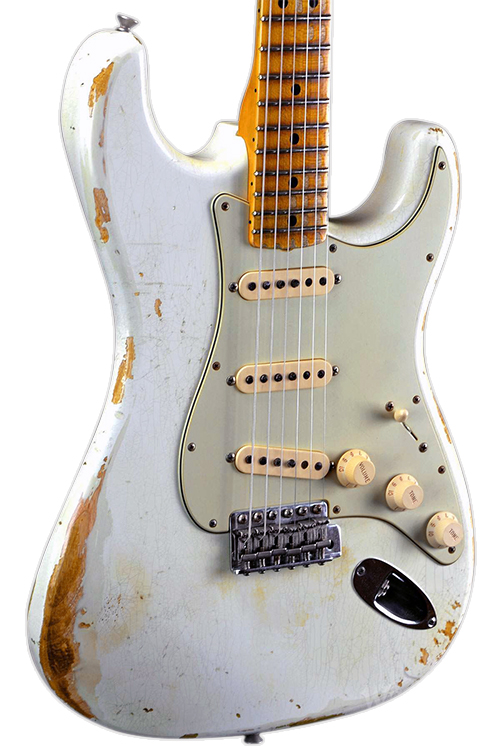

Impersonator E69 nomenclature

Introduced 2-August-2018

Patents  5,668,520    6,103,986    8,791,351 B2

To cancel hum we add a sonically transparent 600 Ohm Hum Sensor coil to the bottom of the pickup which is designed with a low profile coil so it doesn’t make the pickup too tall.  This Hum Sensor is extremely efficient and uses big wire and low turns count to minimize parasitic coil capacitance so it has no impact on the high frequencies as they pass through.  The Hum Sensor is so transparent it can be disconnected without causing any difference to the sound of the pickup (except it will have hum of course).  Additionally, the low profile Hum Sensing bobbin allows us to make a taller string sensor which in turn and in combination with a Patented magnetic invention allows the pickup to produce non-aged sound.  That is ….. bright and sparkly with varying degrees of mid scoop just like the best old Strat pickups had when they were new.

Kinman, like no other noiseless Strat pickup, has broken through the compression / transparency barrier.  Now you can compare Pickups with hum to pickups without hum. Introducing the new T-100 generation hum cancelling Stratocaster pickups, the world’s first non-aged hum-cancelling Strat pickup.  T is for Triumph and 100 is 100% single coil sound.

This new model represents a major milestone in the evolution of Fender type pickups as it has taken about 26 years of inventive and innovative thinking to achieve. The Kinman P-90 Hx and this new model Strat pickup re-affirms Kinman as the King of noiseless.

Covers

• Standard Kinman cover without height extender bushings included.
• Available in White, Black, Aged White.
• With and without Kinman logo.
• White covers can be tinted with food stains such as Coffee and Tea.
• Generic covers will not fit Kinman Strat pickups.  We sell replacement covers in three colors.

Connection means available

• Bare wires for soldering.
• Kinman connectors for plugging into any Kinman Goodbye-Soldering Harness.

Dimensions

• click for dimensions page

Pot & Capacitor values

• Best with 250k Ohm (measured minimum) volume pot.  Less punch and more bright with 500k.
• Tone pot is usually the same value as the volume but for a little more top end brightness can be 500k, 1meg or a No-Load.
• Stock pots can actually measure as low as 175k.  Pots in our Goodbye-Soldering Harness are guaranteed to measure no less that 250k.
• Normal tone cap value of 0.022uF, 63 ~ 100 volt Polyester.  Smaller uF value lessen the severity of Treble cut, higher values increase it.
• The voltage rating of Caps is not important but 63 ~ 100 volt have thicker lead wires that result in a neater job.

Magnet spreads we normally ship (ensures magnets align with the strings in each position)

• Narrow 49.5mm - Neck
• Intermediate 51mm - Middle
• Standard 52.5mm - Bridge
• Option to specify your magnet spreads of sets and singles in our 'After-Payment' Additional Questions' email we send you.

Magnet Staggers

• Normal improved Stagger to suit 7" ~ 14 inch uniform radius fretboards including USA Custom Guitar Compound 7-1/4" ~ 9-1/2
• Flat Stagger 14" ~ 20" for specific compound radius fretboards (Warmoth 10 ~ 16 inch and Post 2010 Fender Deluxe 9 ~ 14")
• Option to choose your magnet stagger for sets and singles in our 'After-Payment Additional Questions' email we send you.

Hook-up cable

• 2 conductor shielded is standard.
• Middle pickups when supplied with a K9 or neck pickup with a TK4 harness have 3 conductor shielded.
• 3 conductor by request with Order.
• Custom lengths by request with Order.

Output Polarity:

• in-phase with Gibson and Copy humbuckers
• in-phase with all other Kinman pickups
• opposite phase to Fender Strat (match phase with 3 Conductor hook-up cable)

Mounting hardware included

• 2 x 6-32 UNC Pan head mounting screws.
• 2 x Silicon Rubber tube springs.

Baseplate options

• Standard Strat squashed triangle (image above)
• Parallel sides like EMG (image on the OVERVIEW Tab)

We highly recommend consulting the Install Guide in the Technical section even if you think you know it all.  Kinmans' require specialized knowledge and sometimes there is updated info.  There is also a handy wiring diagram available.

We also highly recommend consulting the Adjust & Set-up page in the Technical section so you get the best out of your Kinman pickups.

** Alnico-K is a unique proprietary Alnico rod magnet developed by Kinman in 1985.  It is Alnico-5 but has 40% less string pull than Alnico-5 so sustain is longer and there is much less clatter from string crash and no Strat-itis string warble.
