Functions of the optional Kinman K7 mix pot. Rev-2 Page 1 of 2

• Page 1 table displays normal Strat switching function.
• Page 2 table displays the pickup selection with the neck pickup Mix pot at maximum mix on '1'.
  Note the extremely useful combinations of Neck + Bridge -&- Neck + Middle + Bridge. Gradual mixing of pickups is also useful -displayed in Purple

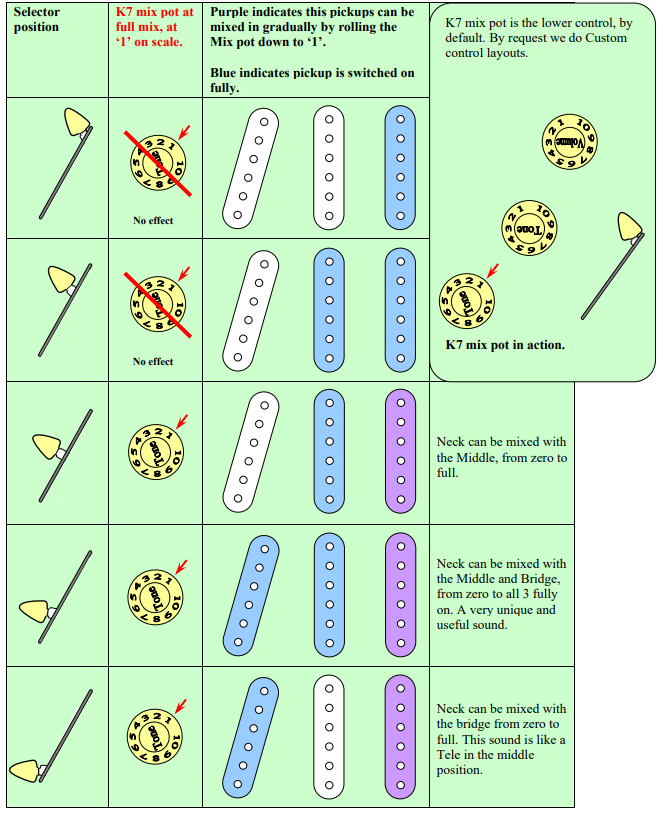

Functions of the optional Kinman K7 mix pot. Page 2 of 2

This table displays the pickup selection with the K7 mix pot operating the neck pickup at maximum mix. Note the extremely useful combinations of Neck + Bridge (for a Tele mid position sound) & all 3 pickups together (something new). Gradual mixing of pickups is also useful, displayed in Purple.
