Kinman H-series Humbuckers. www.kinman.com 3-Nov-11 Rev-5

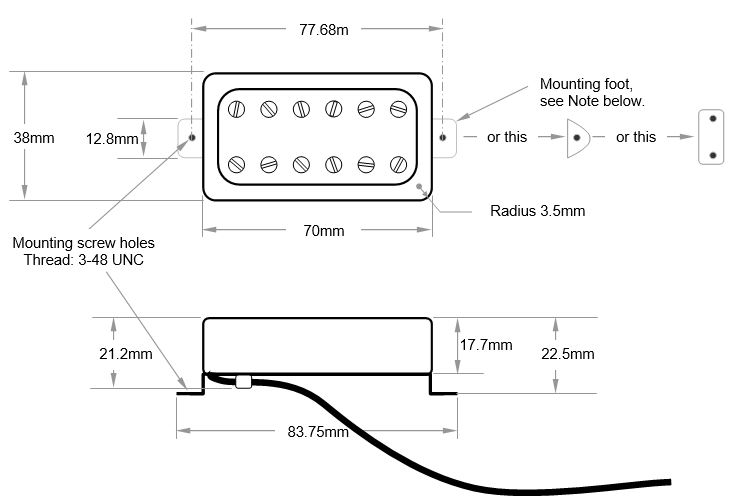

Page 1) Dimensions of pickup
Page 2) Dimensions of cavity or cut-out.

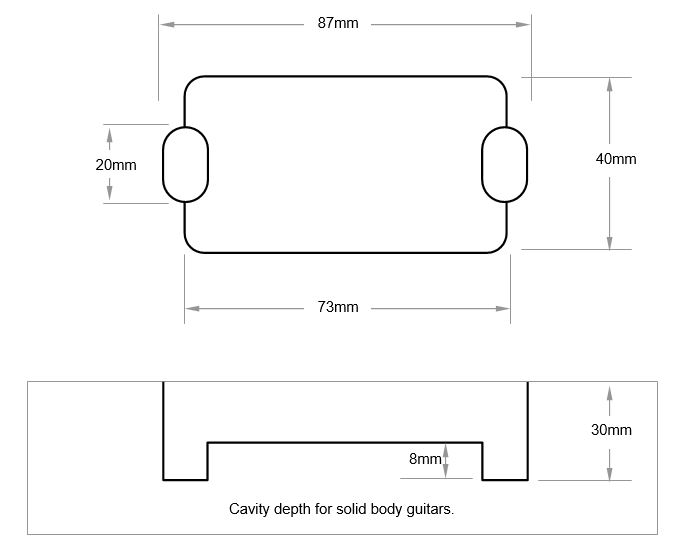

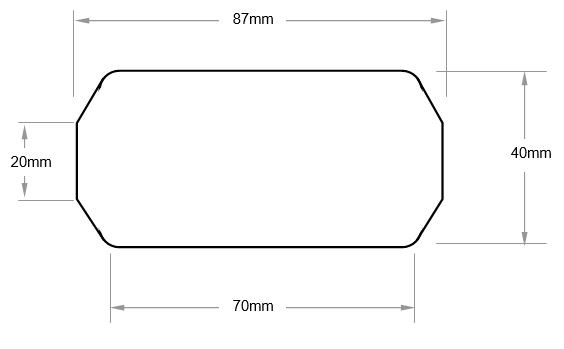

Details of cavity / cut-out. The two shapes shown are the most commonly used by guitar manufacturers.
